Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac

New Electric Power pcb mount encapsulated AC transformer EI42 5VA/6VA/8VA/9VA/10VA

Features:

• Encapsulated Power Transformer with High Dielectric Strength, Available in Various Voltages
• Frequency 50/60HZ,
• Supply voltage 115V-230V by series / parallel connection
• Potted under vacuum
• Dielectric strength 4000Vrms
• Meet UL94V-0 flammability standards
• Ambient temperature (ta): 70°C
• Temperature class: Class B (130°C)
• Heat-resistance 130℃
• Low profile encapsulated power transformer
• Vacuum epoxy resin molded encapsulated power transformer
• PCB mounted encapsulated power transformer
• Water-resistant power transformer
• Different voltages are available
• Power range From 0.35W to 40W
• Well overloaded capacity
• High density installation with good shielding quality
• Inherently energy limited
• Resin: class B IEC 85 (20,000 hours testing to IEC 216)
• Standards: EN61558 and EN60950
• Compliant with CE standards
• Encapsulated toroidal power transformer
• Encapsulated pulse power transformer
• Encapsulated signal isolated transformer
• Encapsulated power transformer EE20x4, EE20X6 and EE20X10
• Encapsulated power transformer EI30X5, EI30X10.5, EI30X12.5, EI30X15.5 and EI30X18
• Encapsulated power transformer EI30X23, EI38X14, EI42X14,EI42X20,EI48X16, EI48X20, EI54X18 and EI60X30
• Encapsulated power transformer UI30,UI39,UI48
• Custom design available
• Common Applications:
• Medical equipments, Industrial equipments/controls, Test equipment , Industrial computers, Telecom , Wave carrier filter, Power transformer and Aux power transformer , Alarm application

Note: Product specifications can be customized.

linear transformer

low frequency transformer

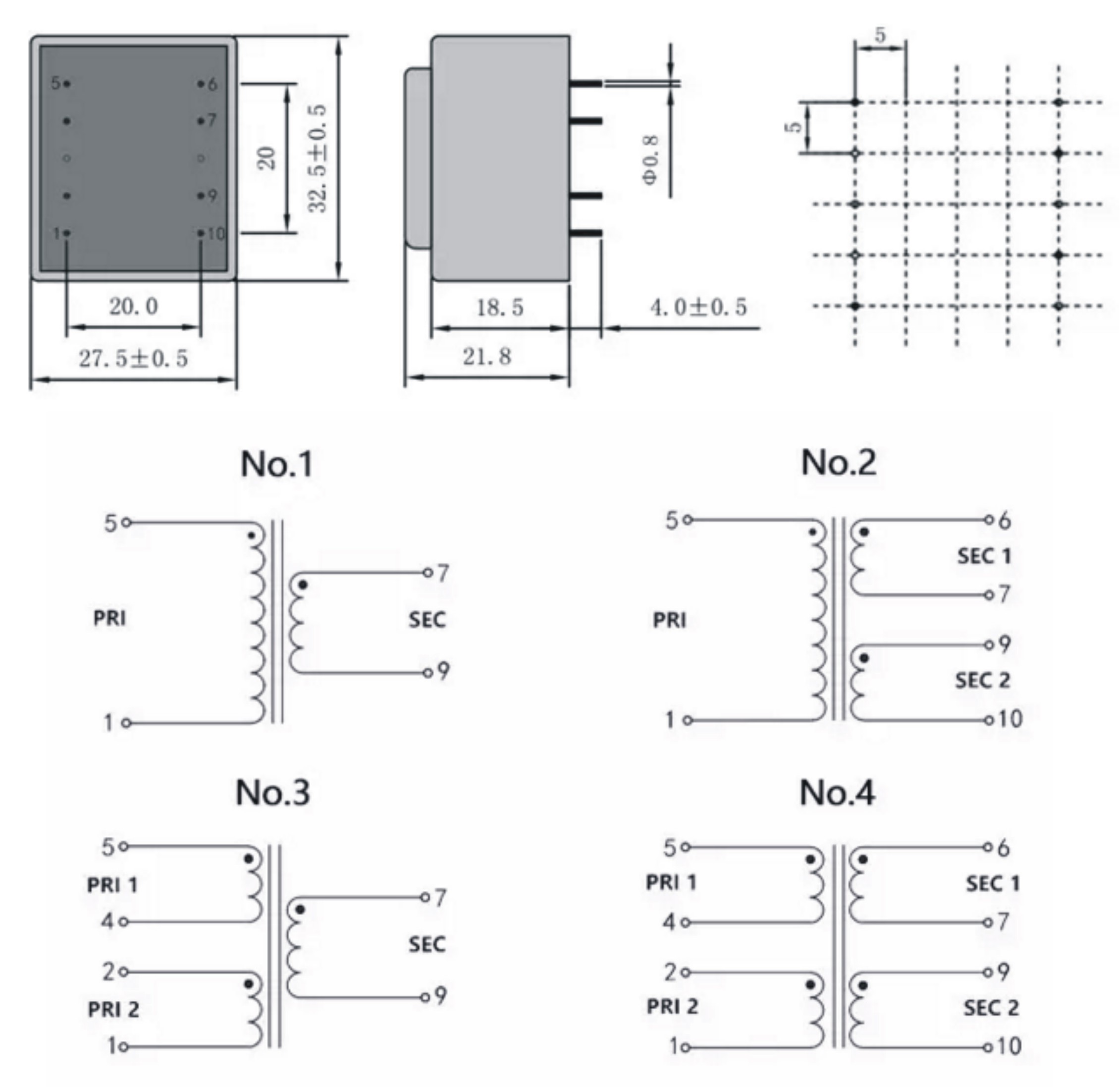

Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac Images
