Analog Output Hall Effect Current Sensor , Hall Effect Sensor Current Measurement

Name: Analog Output Hall Effect Current Sensor Hall Effect Sensor Current Measurement
Brand: Shinhom
Price: 1 USD

Brand Name : Shinhom

Model Number : HBC-LX

Place of Origin : China

Certification : CE, RoHS, ISO

MOQ : Negotiation

Packaging Details : Carton

Delivery Time : 4~8 Weeks

Payment Terms : T/T

Supply Ability : 10000/MONTH

Price : Negotiation

Supply voltage : ±15V ±5%

Rated Input : 0A ~ 75A

Rated Output : 4V ±0.5%

Signal Type : Analog Output

Installation : PCB Mounting

Contact Now

HBC-LX Series Current Transducer Hall Effect Sensor for Current Measurement with 0 to 75A Input

HBC-LX Series current sensor with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Feature
* Closed- loop * Supply voltage: DC +5.0V
* Capable measurement of currents: DC, AC,pulse with galvanic isolation between primary circuit and secondary circuit.

Advantages

* Easy installation * Can be customized
* High accuracy * Very good linearity
* Optimized response time, no insertion losses * Low power consumption
* Low temperature drift * High immunity to external interference

Applications
* Inverter applications * AC/DC variable-speed drive
* Uninterruptible Power Supplies (UPS) * Switched Mode Power Supplies (SMPS)
* Photovoltaic (PV) current applications * New Energy Combiner Box Measurement
* Wind Power Industry Current Detection * Electric vehicle charging equipment current sensing
* Automible By-wire application * Household appliance frequency conversion
* Auto air conpressor application * Hybrid battery pack current sensing
* Automobile electrical power steering system application

ELECTRICAL DATA:

	HBC-05LX		HBC-10LX		HBC-15LX		HBC-20LX
	HBC-25LX		HBC-30LX		HBC-50LX		HBC-75LX
Rated input current	5	10	15	20	25	30	50	75	A
Test current range	10	20	30	40	50	60	100	150	A
Turns ratio	4:1000	3:1500	2:1500	2:2000	1:1250	1:1500	1:2500	1:3750
Rated output voltage	4±0.5%								V
Supply voltage	±15±5%								V
Zero offset current	≤±0.04								V
Consumption current	≤±18±20								mA
Linearity	≤±0.2								%FS
Response time	＜1								µs
Output Thermal drift	＜±0.02								%/℃
Zero Thermal drift	≤±1								mV/℃
Insulation voltage	50(60)HZ,1min, 2.5								KV
insulating strength	＞1000								MΩ
Operating temperature	-40～+85								℃
Storage temperature	-40～+105								℃

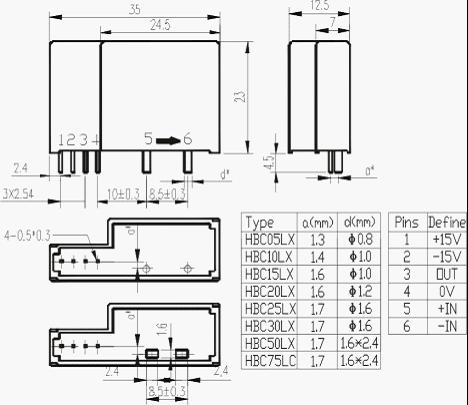

Analog Output Hall Effect Current Sensor , Hall Effect Sensor Current Measurement

Notes: Product specifications can be customized
