Low Voltage Magnetic Split Core CT Small Size Easy Mounting Wide Inner Window

  • 1
  • 2
  • 3

Brand Name : Shinhom

Model Number : SCTK731Y Series

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Current range : 0.5-6000A

Output : 0.333VAC or 0-5A

Accuracy : 0.2、0.5、1.0

Operating Frequency : 50Hz to 2.5KHz

Dielectric strength : 5.0KV/1mA/1min

Customizable : Yes

Contact Now

SCTK731Y Series Supply Low Voltage Magnetic Split Core CT Current Transformer and Snap Closing/Opening Feature​

       SCTK731Y series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.



Features:

  • Test range: 0.5 to 6000A AC input, output of 0.333V or 0-5A
  • Wide inner window,allowing clamping of big cables or bus-bars
  • Wide range of sizes to accommodate all the existing installation
  • Small size and easy mounting
  • High accuracy and reliability



Applications:

  • Current, power, energy and monitoring devices
  • Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation – control system.
  • Current measurement, monitoring and protection for electrical wiring and equipment



Electrical Parameter

Rated Input 0.5A-6000A
Measuring range 10%In-130%In
Rated Output 0.333V(AC) or 0-5A
Ratio ≤± 0.1%
Phase angle ≤ ±5min
Insulation Resistance DC500V/100MΩmin





Mechanical Parameter

Case PC/UL94-V0
Bobbin PC
Core Silicon
Internal structure Epoxy
Construction Tie
Operating Temp －25℃～＋75℃
Operating Humidity ≤85%
Output Connection Terminal or UL1015 22AWG Wire 1.5m





Type selection



P/N

Rated Input

(A)

Output

(A)

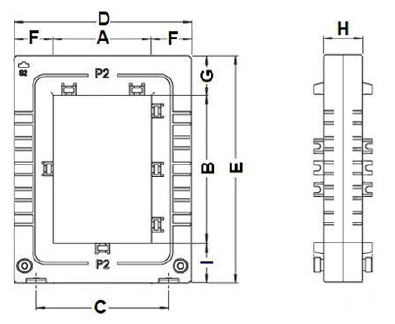

 Accuracy Dimensions(mm)
        A B C D E F G H I



SCTK731Y(33)



100-400A



1A/5A



0.2,0.5,1.0



32



32



43



96



96



32



32



50



32



SCTK731Y(34)



100-600A



1A/5A



0.2,0.5,1.0



32



42



43



96



106



32



32



50



32



SCTK731Y(35)



100-1000A



1A/5A



0.2,0.5,1.0



32



52



43



96



116



32



32



50



32



SCTK731Y(36)



100-1200A



1A/5A



0.2,0.5,1.0



32



62



43



96



126



32



32



50



32



SCTK731Y(38)



200-1500A



1A/5A



0.2,0.5,1.0



32



82



43



96



146



32



32



50



32



SCTK731Y(310)



250-2000A



1A/5A



0.2,0.5,1.0



32



102



43



96



166



32



32



50



32



SCTK731Y(312)



500-2500A



1A/5A



0.2,0.5,1.0



32



122



43



96



186



32



32



50



32



SCTK731Y(313)



500-3000A



1A/5A



0.2,0.5,1.0



32



132



43



96



196



32



32



50



32



SCTK731Y(44)



100-600A



1A/5A



0.2,0.5,1.0



42



42



53



106



106



32



32



50



32



SCTK731Y(45)



100-1000A



1A/5A



0.2,0.5,1.0



42



52



53



106



116



32



32



50



32



SCTK731Y(46)



100-1200A



1A/5A



0.2,0.5,1.0



42



62



53



106



126



32



32



50



32



SCTK731Y(48)



200-1500A



1A/5A



0.2,0.5,1.0



42



82



53



106



146



32



32



50



32



SCTK731Y(410)



250-2000A



1A/5A



0.2,0.5,1.0



42



102



53



106



166



32



32



50



32



SCTK731Y(412)



500-2500A



1A/5A



0.2,0.5,1.0



42



122



53



106



186



32



32



50



32



SCTK731Y(413)



500-3000A



1A/5A



0.2,0.5,1.0



42



132



53



106



196



32



32



50



32



SCTK731Y(55)



100-1000A



1A/5A



0.2,0.5,1.0



52



52



63



116



116



32



32



50



32



SCTK731Y(56)



100-1200A



1A/5A



0.2,0.5,1.0



52



62



63



116



126



32



32



50



32



SCTK731Y(58)



200-1500A



1A/5A



0.2,0.5,1.0



52



82



63



116



146



32



32



50



32



SCTK731Y(510)



250-2000A



1A/5A



0.2,0.5,1.0



52



102



63



116



166



32



32



50



32



SCTK731Y(512)



500-2500A



1A/5A



0.2,0.5,1.0



52



122



63



116



186



32



32



50



32



SCTK731Y(513)



500-3000A



1A/5A



0.2,0.5,1.0



52



132



63



116



196



32



32



50



32



SCTK731Y(516)



1000-5000A



1A/5A



0.2,0.5,1.0



52



162



63



116



226



32



32



50



32



SCTK731Y(66)



100-1200A



1A/5A



0.2,0.5,1.0



62



62



73



126



126



32



32



50



32



SCTK731Y(68)



200-1500A



1A/5A



0.2,0.5,1.0



62



82



73



126



146



32



32



50



32



SCTK731Y(610)



250-2000A



1A/5A



0.2,0.5,1.0



62



102



73



126



166



32



32



50



32



SCTK731Y(612)



500-2500A



1A/5A



0.2,0.5,1.0



62



122



73



126



186



32



32



50



32



SCTK731Y(613)



500-3000A



1A/5A



0.2,0.5,1.0



62



132



73



126



196



32



32



50



32



SCTK731Y(616)



1000-5000A



1A/5A



0.2,0.5,1.0



62



162



73



126



226



32



32



50



32



SCTK731Y(88)



200-1500A



1A/5A



0.2,0.5,1.0



82



82



93



146



146



32



32



50



32



SCTK731Y(810)



250-2000A



1A/5A



0.2,0.5,1.0



82



102



93



146



166



32



32



50



32



SCTK731Y(812)



500-2500A



1A/5A



0.2,0.5,1.0



82



122



93



146



186



32



32



50



32



SCTK731Y(813)



500-3000A



1A/5A



0.2,0.5,1.0



82



132



93



146



196



32



32



50



32



SCTK731Y(814)



800-4000A



1A/5A



0.2,0.5,1.0



82



142



93



146



206



32



32



50



32



SCTK731Y(816)



1000-5000A



1A/5A



0.2,0.5,1.0



82



162



93



146



226



32



32



50



32



SCTK731Y(1010)



250-4000A



1A/5A



0.2,0.5,1.0



102



102



113



166



166



32



32



50



32



SCTK731Y(1111)



250-4000A



1A/5A



0.2,0.5,1.0



112



112



123



176



176



32



32



50



32



SCTK731Y(1212)



500-4000A



1A/5A



0.2,0.5,1.0



122



122



133



186



186



32



32



50



32



SCTK731Y(1313)



500-5000A



1A/5A



0.2,0.5,1.0



132



132



143



196



196



32



32



50



32



SCTK731Y(1515)



600-5000A



1A/5A



0.2,0.5,1.0



152



152



163



216



216



32



32



50



32



SCTK731Y(1616)



800-5000A



1A/5A



0.2,0.5,1.0



162



162



173



226



226



32



32



50



32



SCTK731Y(1818)



1000-5000A



1A/5A



0.2,0.5,1.0



182



182



193



246



246



32



32



50



32



SCTK731Y(2020)



1000-6000A



1A/5A



0.2,0.5,1.0



202



202



213



266



266



32



32



32



50





Low Voltage Magnetic Split Core CT Small Size Easy Mounting Wide Inner Window




Notes: Product specifications can be customized
