Lead Free Surface Mount Choke Multiple Size Optional Excellent Q SRF Values

Name: Lead Free Surface Mount Choke Multiple Size Optional Excellent Q SRF Values
Brand: Shinhom
Price: 1 USD

Buy cheap Lead Free Surface Mount Choke Multiple Size Optional Excellent Q SRF Values product

Brand Name : Shinhom

Model Number : LQH Series

Certification : RoHS

Place of Origin : China

MOQ : 5000PCS

Packaging Details : Carton

Delivery Time : 4~8 Weeks

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Price : Negotiation

Name : SMD power inductor

Inductance : 0.1uH to 10mH

Tolerance : K=±10%,M=±20%

Customized : YES

Size : Various

Standard : RoHS/SGS/ISO9001

Contact Now

LQH Series High current surface mount power inductor,Unshielded SMD Inductor,Multiple size options

FEATURES:

· Ferrite Core
· High Frequency Design
· Lower DCR permits High Idc
· Available in E12 series
· Excellent Q SRF Values
· Lead free versions
· RoHS compliant
· Excellent Thermal Stability

APPLICATIONS:

· Modems PDP. LCD TVs convertor
· Mobile Radios DC/DC convertor
· Cordless Telephones Car radios
· Global Positioning Systems
· Wireless Communications Equipment
· Networking System,xDSL Filter
· Computer Products and Peripherals

TECHNICAL INFORMATION:

·Inductance Testing: HP4291A,HP16193A,HP4286A or equivalent
·RDC:QuadTech 1880 Milliohmmeter
·Q- HP4342A
·SRF-HP4191A
·Rated Current L value drop10%typ.at IDCagainst its initial value
·Temperature rise 40℃ Max Reference ambient temperature
·Solderability: 75% of the terminal electrode shall be covered
·Soldering Methods: Wave,Reflow
·Operating Temperature:-25℃ to +85℃
·Storage Temperature: -55℃ to +125℃

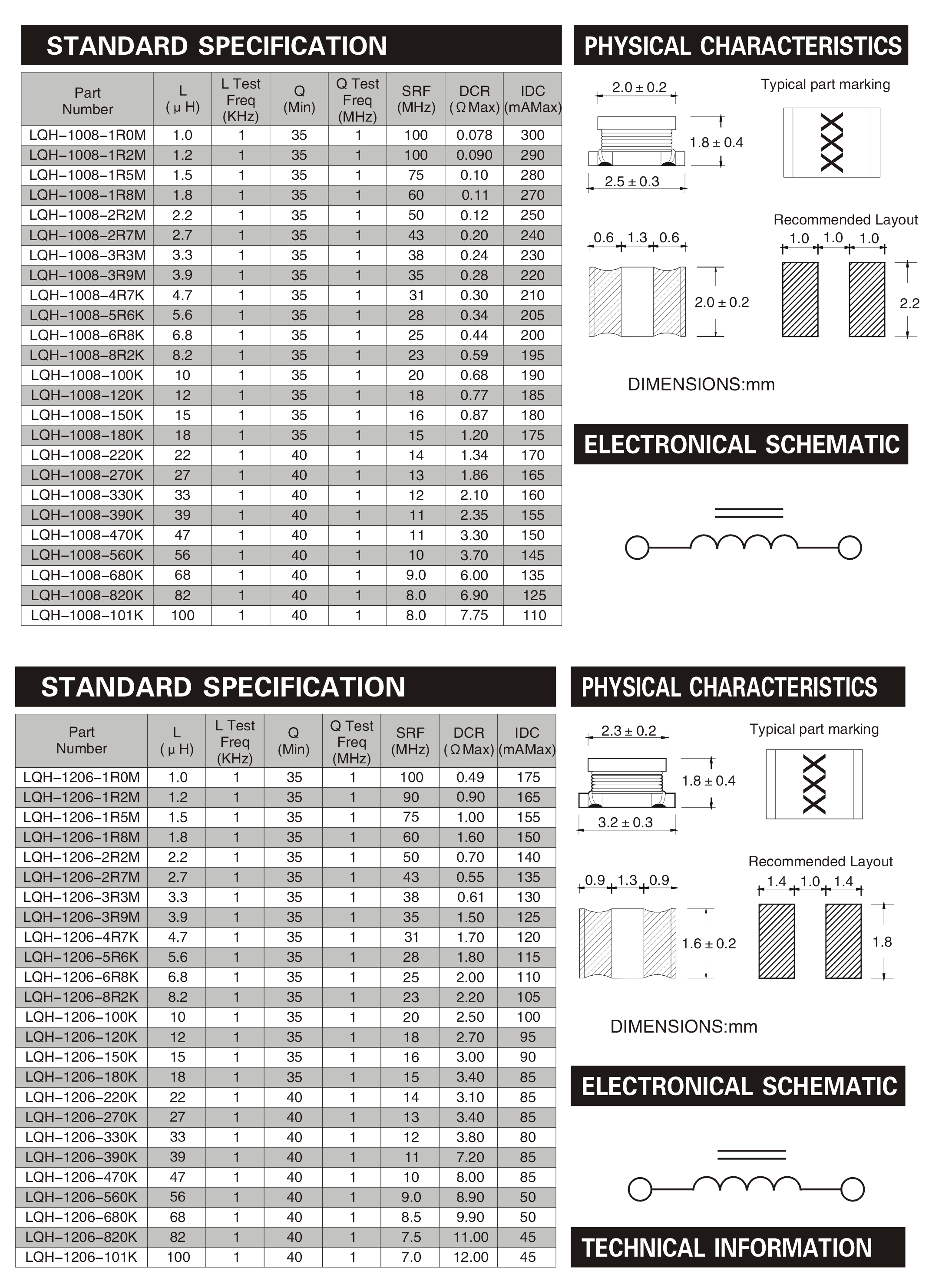

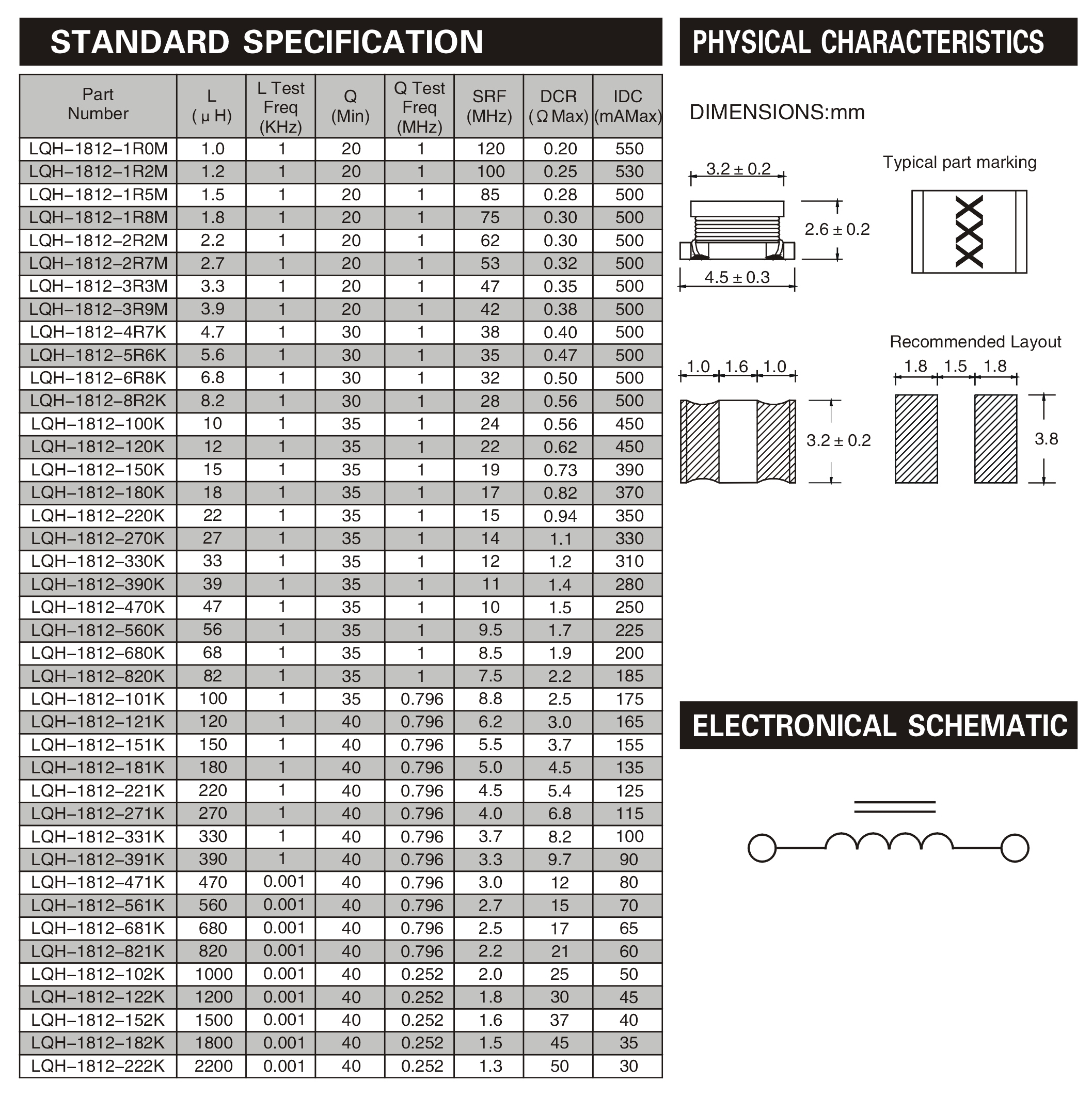

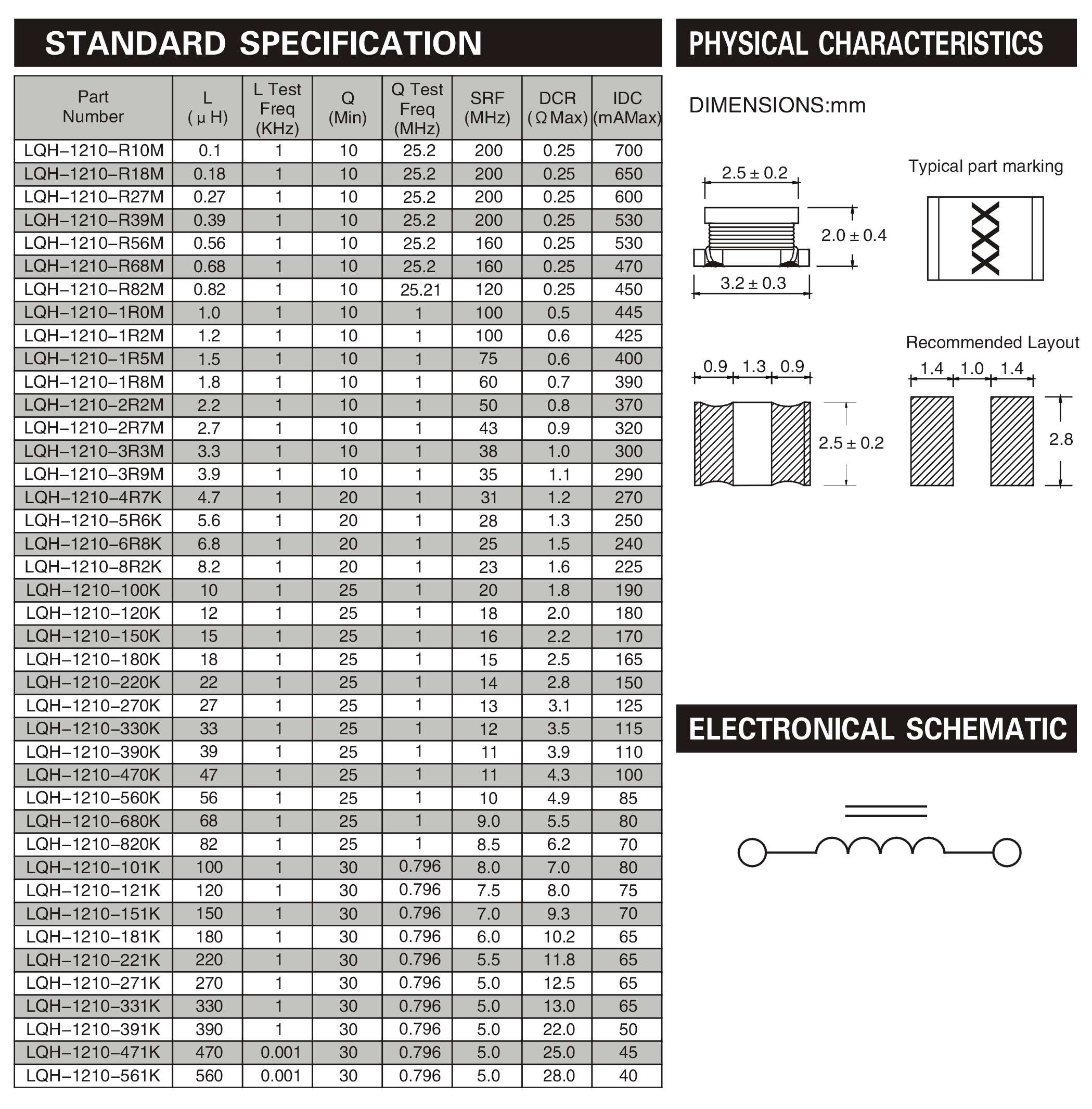

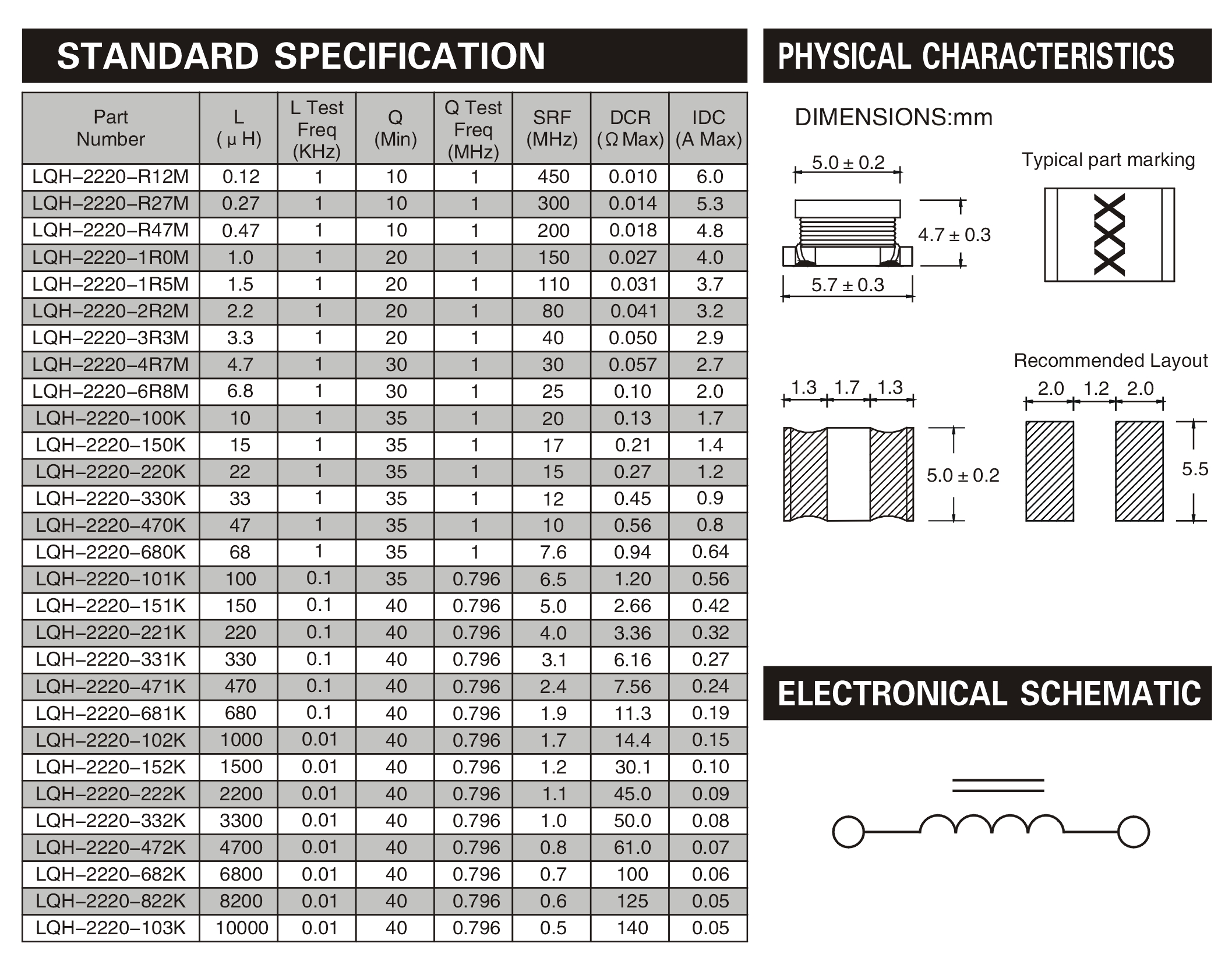

Lead Free Surface Mount Choke Multiple Size Optional Excellent Q SRF Values

Note: Product specifications can be customized.
